Copper

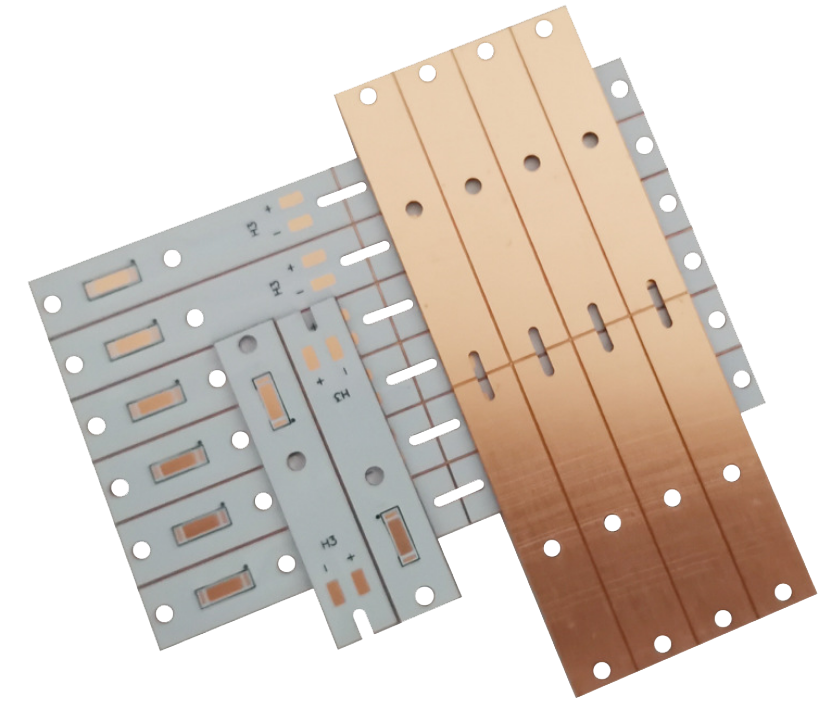

Copper - 1L Copper core 1.6MM thickness PCB.png

1L Copper core 1.6MM thickness PCB.png

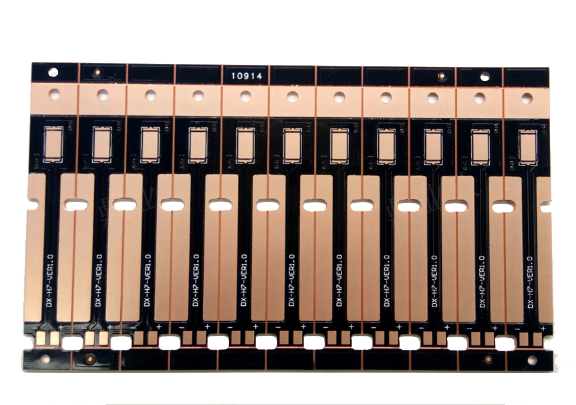

Copper - 1L Copper core 1MM thickness PCB

1L Copper core 1MM thickness PCB

Features

*Excellent thermal conductivity

*Much more environmental protection

*Recyclable

Competence

Layer	1-4
The Width/Length	Width:450mm , Length 1000mm
Line Width/Space	Inner : 3/3mil, Outer : 3/3mil
Minimum Drilling Diameter	0.7mm(Mechanical Dilling) for aluminum, 0.2mm for the resin holes
Minimum Ring Width	6mil
Board thickness	0.4-2mm
Finished Copper (max)	Inner : 3 OZ, Outer : 3 OZ
Dimension Accuracy	+/-0.15mm(specially 士0.1mm)
Surface Processing Method	ENIG、HASL、OSP

Application

Medical Products

· Obtaining long-term recognition from multiple medical clients

· Small size, fine PCB to meet the needs of portable products

Automotive Products

· High reliability PCB product quality control

· Meet the technological research and development of new energy vehicles

· Strictly follow the IATF 16949 management system for operation

Home lighting

· Metal substrate

· High thermal conductivity

· Heat dissipation holes, high power

Road lighting

· Metal substrate

· High thermal conductivity

· Heat dissipation holes, high power

· High operating temperature
